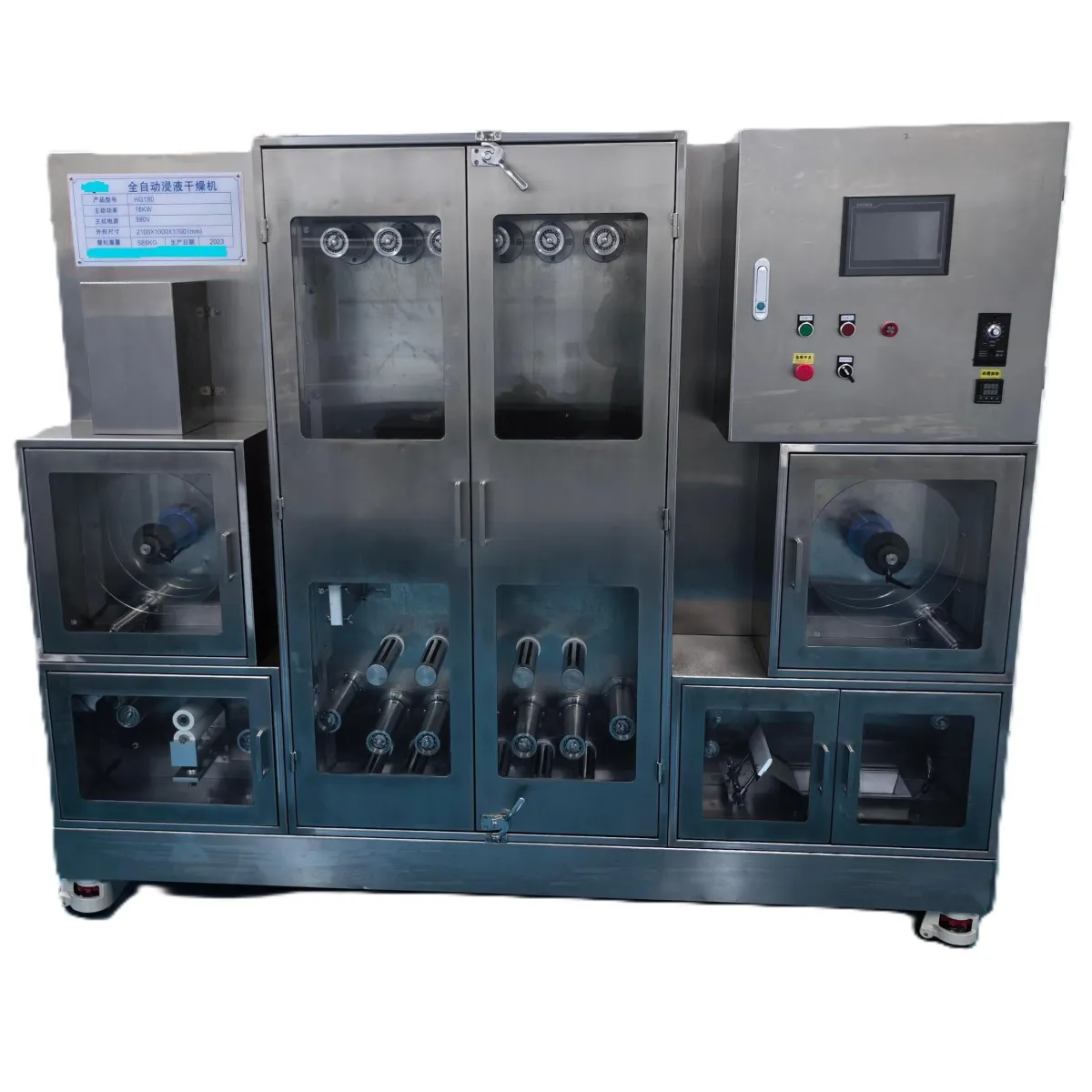

Urinalysis test strip equipment

First, the dipped and dried test paper is bonded with the double-sided adhesive with release paper into one piece, and then enters the cutting tool to be slit into 13 finished products each with a width of 5mm (with an accuracy of ±0.05mm). They are continuously collected in an acrylic roll-up tray.To peel off the release paper from the double-sided adhesive tape on the cut test paper strips in the winding reel, and then position them through the positioning wheel and rubber wheel, and press them onto PET, PVC, or various other material substrates of different widths.Finally, the composite plastic backing (130mm*255mm)was fed into the track, and it will be cut into 50 finished strips, each 5mm wide.
