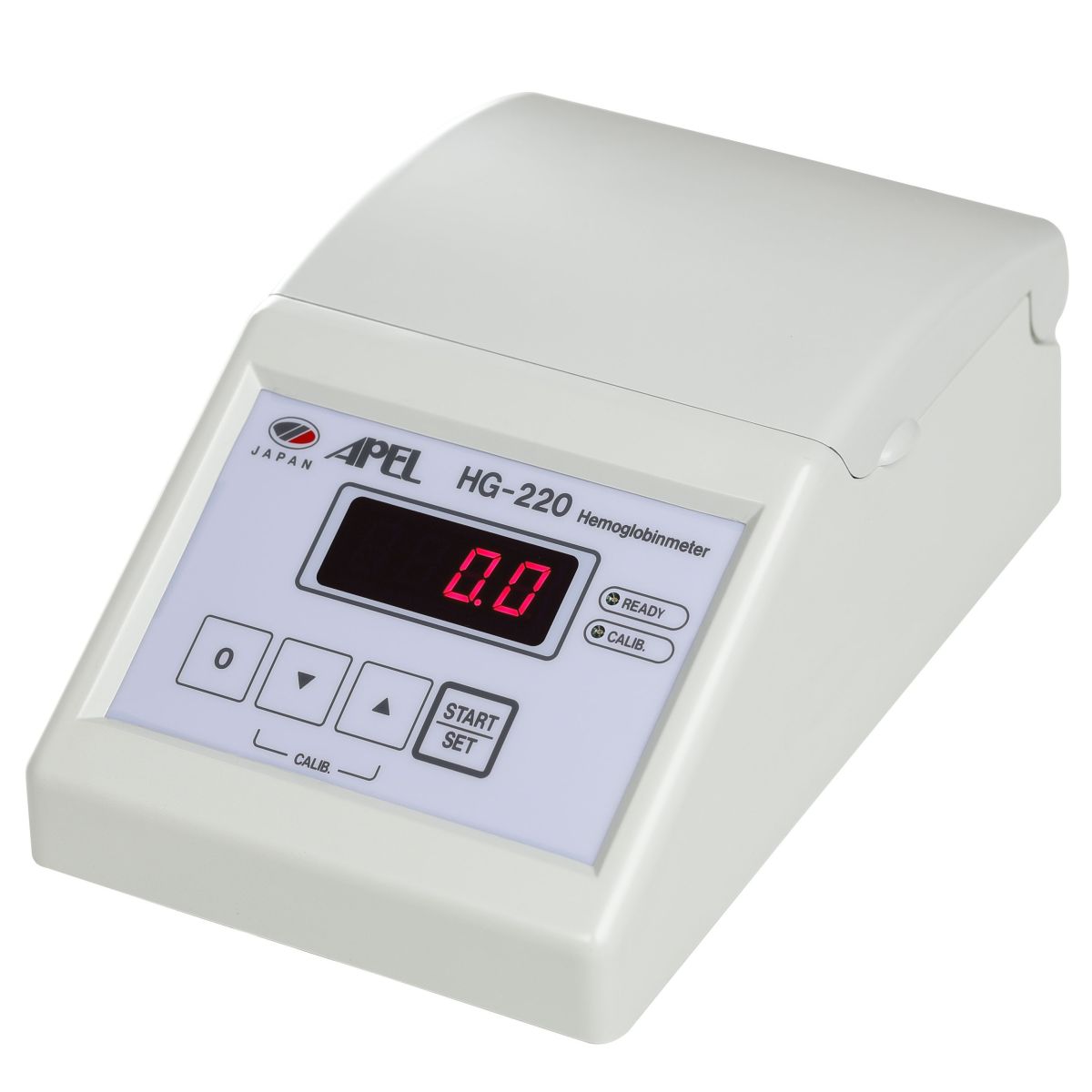

Hemoglobinmeter HG-220

Hemoglobinmeter HG-220

Haemoglobin Meters

Information

Specifications Measurement method Cyanmethemoglobin method Display 3-1/2 digit (7 segment LED) Wavelength 540 nm Measuring range g/dL:　　0.0 - 30.0 mmol/L: 0 - 20.0 Light source Ultra-high brightness green LED Photo detector Silicon-photodiode Minimum Sample volume 1.0 mL(ｍinimum) Accuracy ±1.0 % Dilution ratio 1 : 251 Power AC adapter(100 - 240 VAC, 50 / 60 Hz) Frequency 50 – 60 Hz Dimensions 117 (W) x 185 (D) x 77 (H) mm Cuvette Square glass cuvette （12.5 x 12.5 x 45 mm, outer size） Weight Net 0.6 kg (Main body) ***Measurement of Hemoglobin only.***
Apel Co LtdS1.D80Since 1976 we have developed, designed and manufactured, mainly optical analytical instruments, including medical devices such as neonatal Bilirubin meter, Hemoglobin meter and analytical instruments such as photoelectric colorimeter, spectrophotometer, etc. We have supplied our products not only in Japan but also worldwide more than 70 countries. Those our products have been used in all fields of analysis of liquid concentration, such as department of obstetrics and gynecology, pediatrics, blood center, laboratories, school, food and beverage manufacturers and water quality test site etc.
