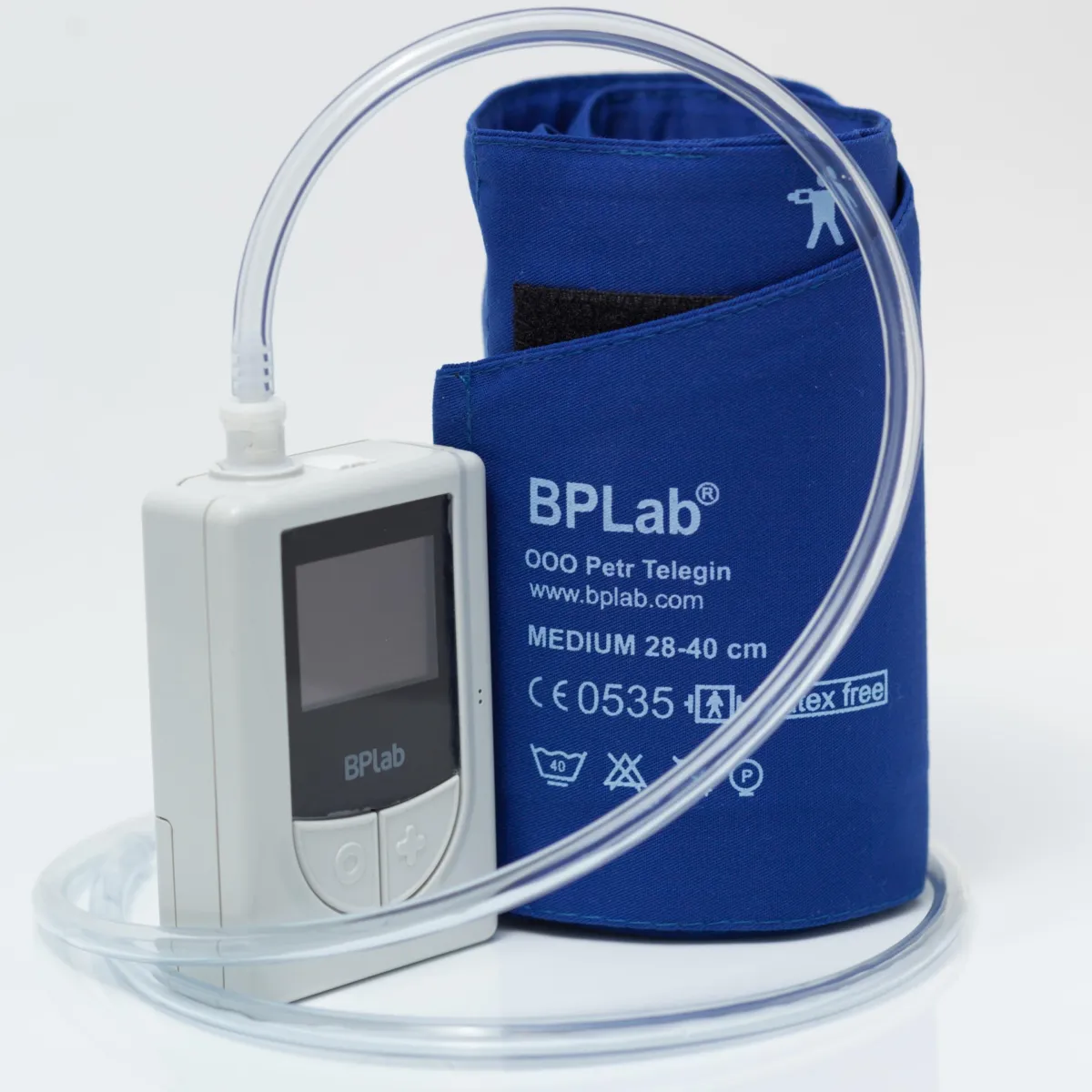

24-hour ABPM Compact 2
Blood Pressure Monitors
Information
Confirmed accuracy class A/A for measuring blood pressure according to the BHS protocols in 3 groups of patients: general, pediatric population and pregnant women; ESH in general population and pregnant women (Pass);
ISO 81060-2:2018 + Amd. 1: 2020 in general population, pediatric population, in patients with atrial fibrillation, in patients with diabetes mellitus.
Main characteristics:
Small size and light weight;
Manual programming, 4 pre-installed measurement plans;
Driverless cable (plug-in and go);
3 connection protocols: USB, SD-card, Bluetooth;
Color display;
Power supply: 2 AA rechargeable or alkaline batteries;
High-capacity storage: up to 999 BP measurements;
Easy implementation into a 24-hour Holter ECG software
OEM solution for 24-hour Holter ECG manufacturers.
Advanced features:
Measurement quality control - storage of oscillograms (quick artefact detection);
24-hour arterial stiffness and central aortic pressure analysis ;
Implementable into Hospital Information Systems (HL7, DICOM, GDT/BDT);
Patient’s activity and body position sensors (to establish wake / sleep time borders).
Patient-friendly measurement process:
Adaptive inflation
Minimum measurement time
Pulse wave analysis (PWA) with no additional inflation step (est. Pulse Wave Velocity in aorta, central BP, Augmentation Index)
Washable latex free cuffs, 6 sizes of cuffs available.
