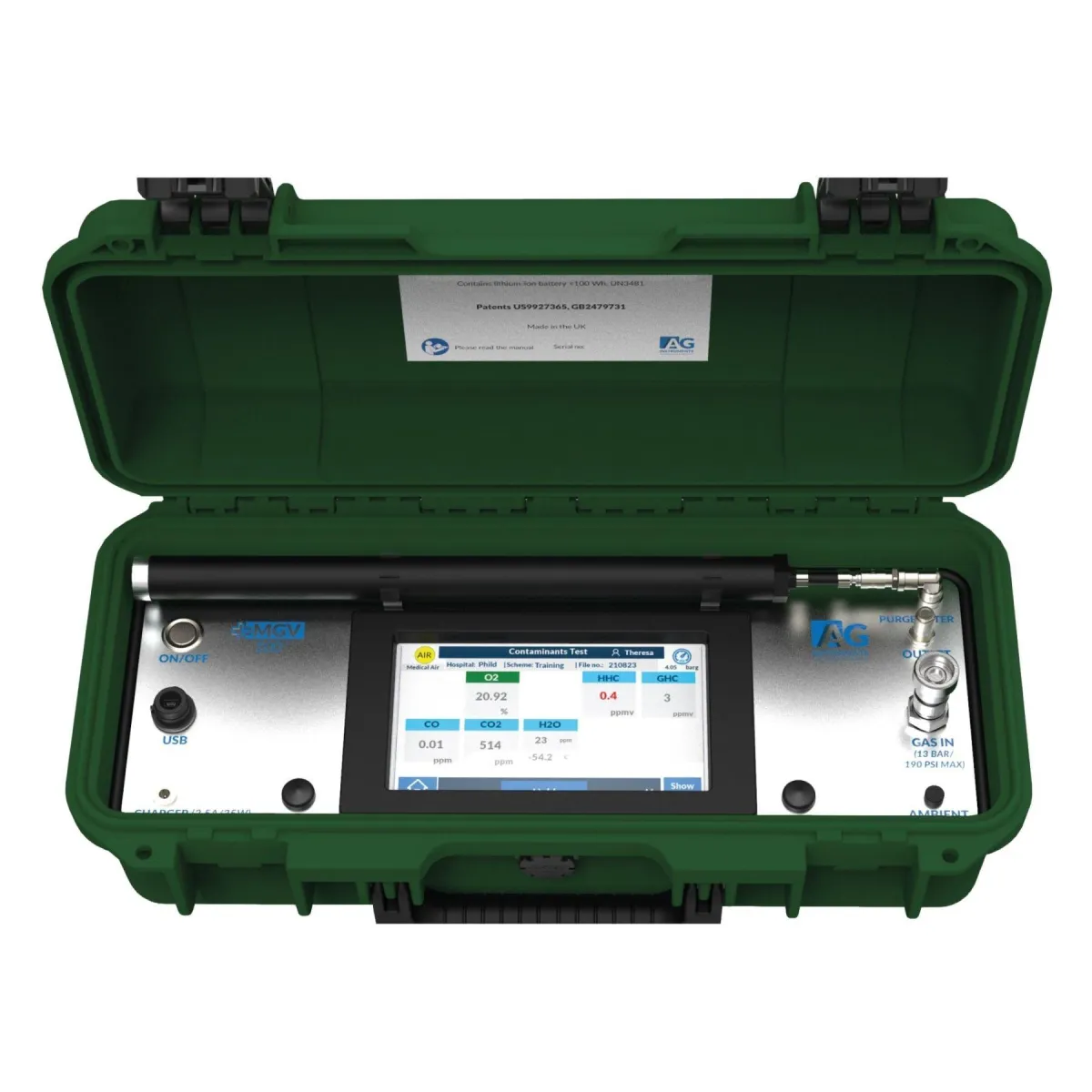

Medical Gas Analyser - MGV 100 (NFPA99)
Maintenance / Support Services
Information
The MGV100 is the world’s only All-In-One NFPA99 gas analyzer which provides MGVs with the ultimate combination of measurement accuracy, speed and convenience in an ergonomic, light and compact design.
Product Details
- Measures O2, N2O, Water Vapor, CO2, CO, GHC, HHC, gas pressure and vacuum.
- Optional SO2, NO and NO2 sensors as per US Pharmacopeia requirements.
- Connects directly to any gas outlet with gas pressure up to 190 psi (13 Bar).
- No air bottle is needed to perform Air calibration.
- Built-in filter provides dry and clean air for automatic Air Calibration when needed.
- Precise temperature and pressure calibration for stable readings and reduced gas calibration.
- Direct connection to any gas outlet through a robust stainless-steel braided hose.
- Safe gas discharge using one vent tube.
- Data can be uploaded to the MGPS-Reports PC Software.
- Test results are shown with out-of-range values highlighted according to NFPA99.
- The MGVReports Air plant monitoring option provides real-time logging of gas readings for up to an hour with both tabular and graphic presentation of the results.
- Very Compact and light: 11.5 lb/ 5.2kg.
- Large 7” colour touch screen for excellent readability and control.
