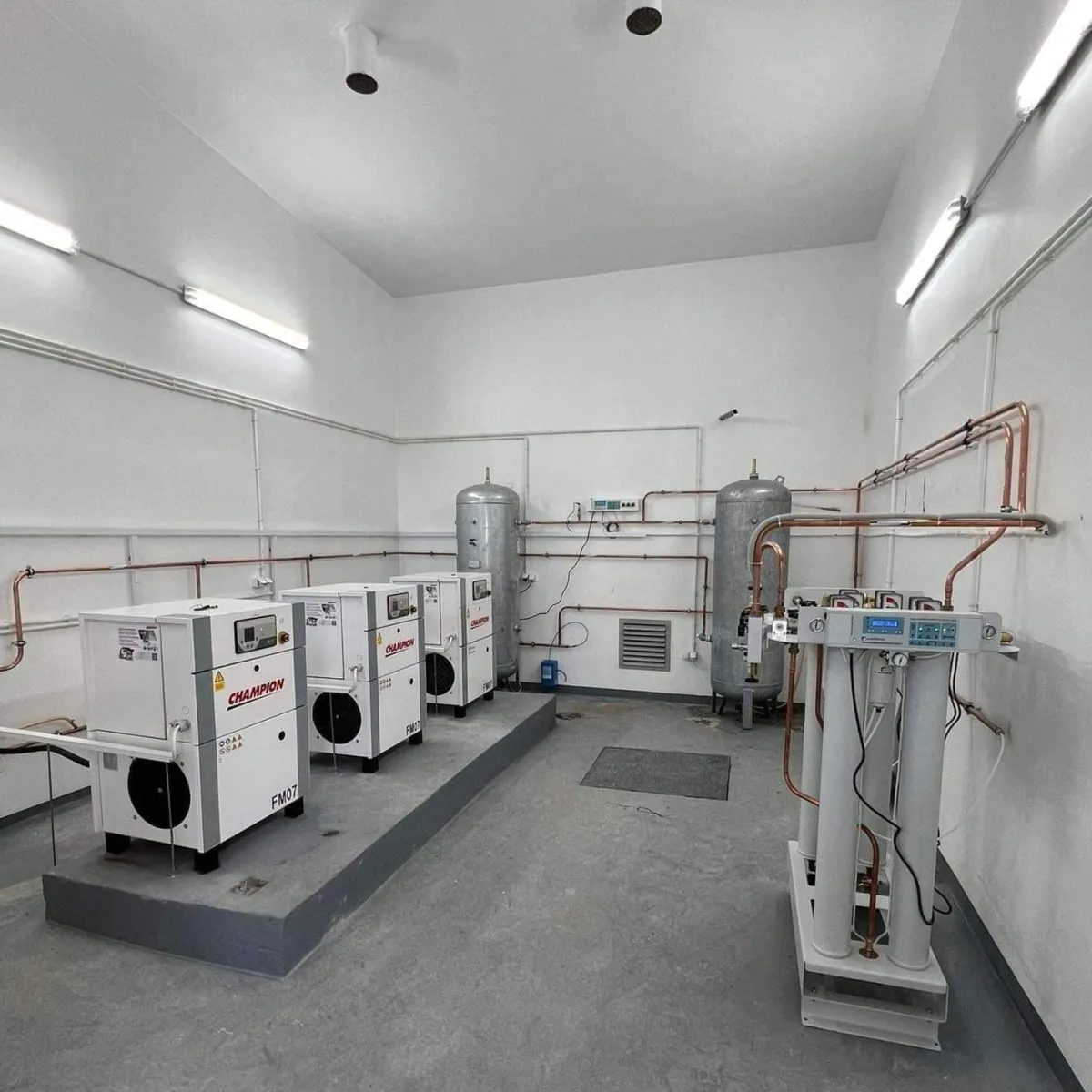

Air Compressors System for Breathing Air

The fully automatic medical compressed air plant provides a reliable and constant air supply, in predefined pressure level, without the transport and management cost associated with heavy gas cylinders. The plant is designed to operate at a maximum of 10bar. The automatic control-monitor unit monitors continuously the medical air net pressure via the electronic pressure transducer and regulates the network pressure via controlling the operation (remote start and stop) of the compressors (individually controlled). In every demand, as long as the vessel buffer is exhausted, the first compressor is automatically started and works until the predetermined pressure level is achieved. In case of larger demand that the one compressor cannot meet, then a second or a third compressor automatically starts working until the predetermined pressure level for each compressor has been achieved. The operation and rotation mode in every operation cycle is defined by the automatic control-monitor unit. The rotation mode is depending on the operation hours of every compressor, in order to have comparable wear for all the compressors. In every operation cycle, the compressor holds the minimum operation hour start working. Also there is an option, by activating a parameter on the automatic control unit, according to which if the compressor working cannot reach the predefined pressure level, then a second or a third compressor automatically starts working and so on. The automatic control unit can be connected to hospital's local area network providing remote monitoring and setting through TCP/IP protocol using an internet browser.
