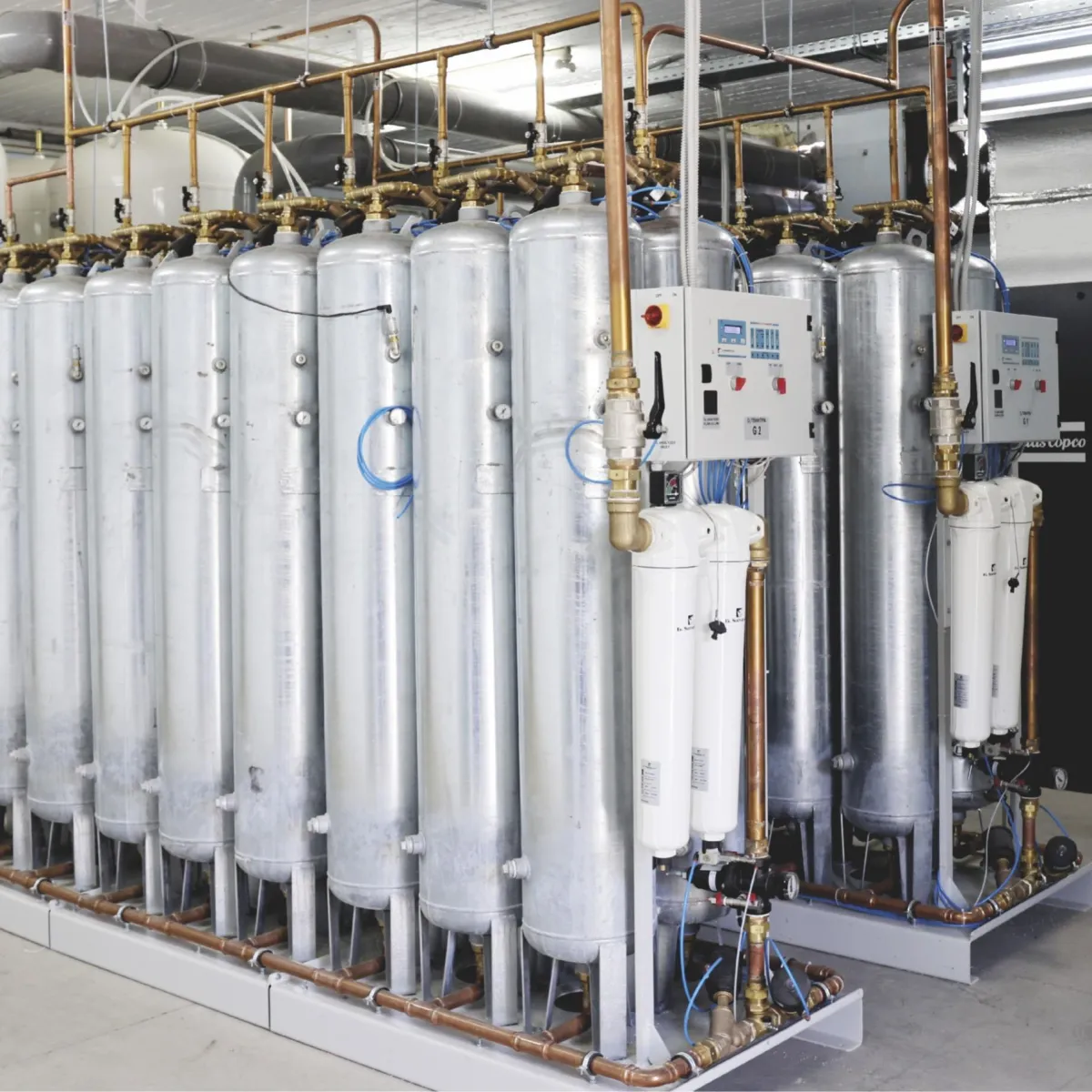

Medical Oxygen Concentrators Supply System

Pressure Swing Adsorption (PSA) is a low power consuming solution, efficient and reliable for onsite production of high purity oxygen. It uses the basic principle of passing air over adsorbent material which bound with nitrogen to leave rich stream of oxygen. G. Samaras S.A can offer different solutions for Oxygen Generator in different sizes and different flows. A typical Oxygen generator system comprise from: Compressed Air Systems: • Air Compressor • Air Treatment unit by refrigerating dryer and filters • Air Receiver in proper size Oxygen Generator: • PSA Plant • PLC • Oxygen Analyser • Oxygen Receiver & high efficiency O2 filter High Pressure Filling System Booster to fill the cylinders bank (150 bar at 5 bar inlet pressure / 200 bar at 8 bar inlet Pressure). All medical central stations can be accommodated in special-made containerized cabinet for outdoor installations according to EN ISO 7396-1, HTM 02-01 and NFPA 99 standards. Every part of the station is fitted inside the container including the medical gases and electrical connections.
