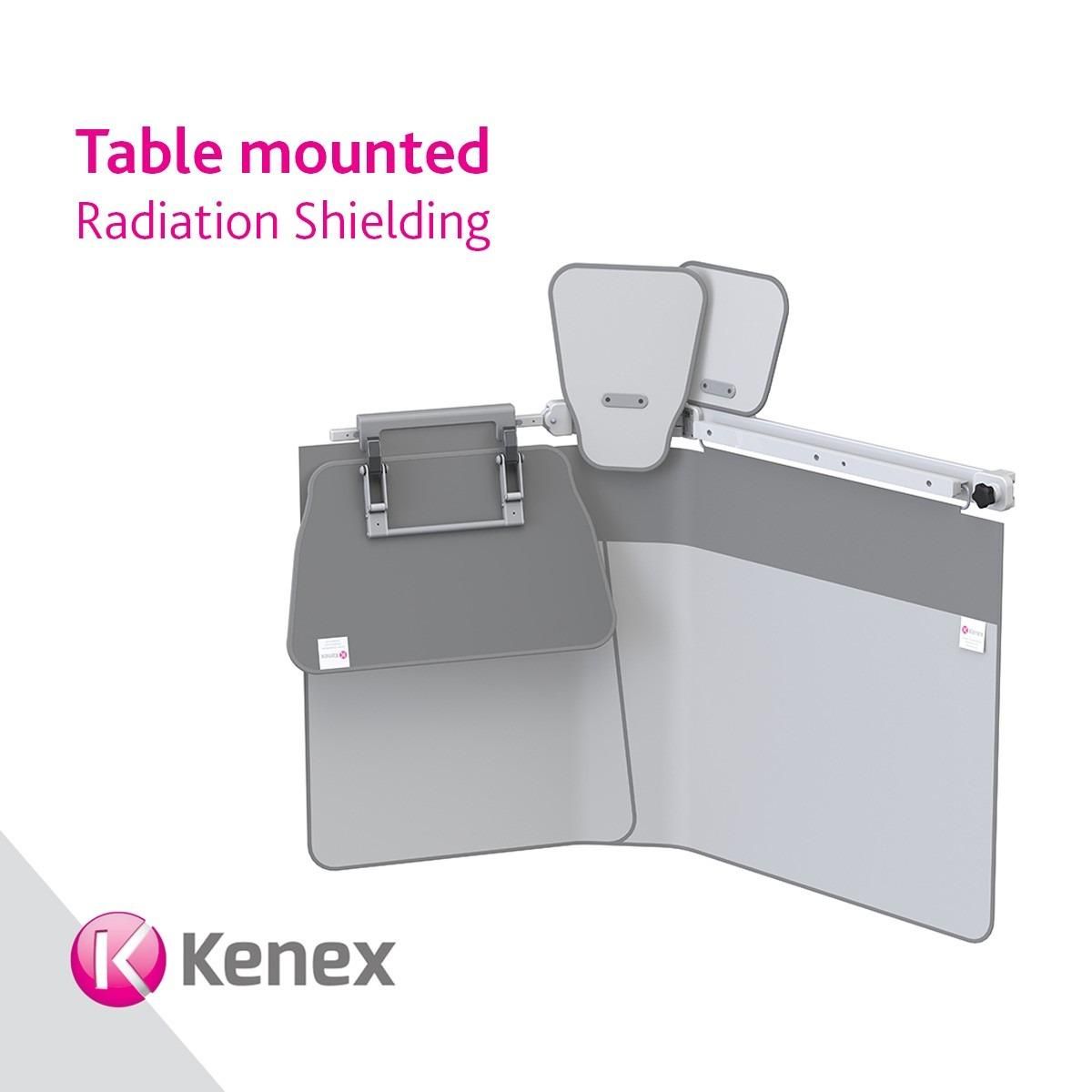

Table mounted shielding for the lower body
Tubes, Accessories
Information
Our comprehensive range of table shields are designed to significantly reduce exposure to scatter radiation. These shields provide effective lower body protection, while optional top shields bridge the gap between suspended shielding systems and upper body protection.
Designed and engineered to the highest giving longevity, flexibility, and functional solutions against scatter radiation.
Key features include:
- Shields are available in the following widths: 78 cm, 92 cm, 100 cm, 114 cm, 137 cm, and 162 cm.
- Shields have an attachment bracket that slides onto the operating tabletop accessory rail (max 11 mm thick). All models can be quickly adjusted to fit either a 25 mm or 29 mm accessory rail.
- Table side shields mount easily to either side of the table allowing the pivotal arm to always face the head end.
- Pivotal arm supports a flexible 0.5 mm Pb lead curtain creating a 'safe zone of occupancy’. This lead curtain consists of a flexible inner layer with a durable outer covering bonded to it. This means the lead protection cannot fall away unnoticed.
- Patented collision avoidance feature unique to Kenex table shields.
- Enhanced double friction joint or single friction pivot.
- All shields have automatic wear adjustment ensuring accurate joint friction and preventing unwanted movement even when the table is tilted.
- Curtain forms around an under table x-ray tube without impeding movement.
- Shields are available with a one piece or three piece curtain.
- Optional semi-flexible top shields for additional protection to the upper body.
