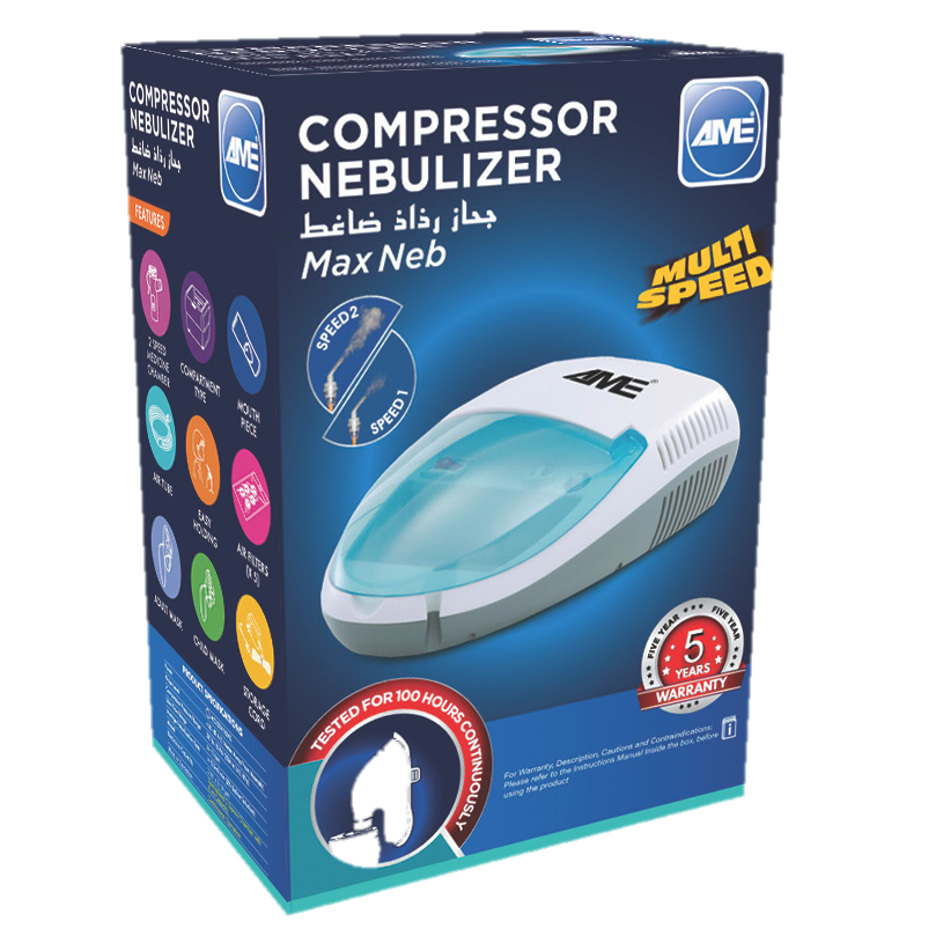

AME Compressor Nebulizers
Flowmeter, Spirometer, Vaporisers, Nebulisers
Information
Power: AC 230V / 50Hz
Power Consumption: 180VA
Nebulizer medication Capacity: 8ml
Partical Size: Approx.(75.74±0.02)% within 0.5 to 5um range
MMAD: 2.81±0.14μm
Average Nebulization Rate: ≥0.2ml/min
Noise Level: Below 65dBA (DIN EN 13544-1)
Compressor Pressure Range: 30 ~ 50 Psi / 206Kpa~345Kpa
Operation Pressure Range: 9.5 ~ 20 Psi / 65.5Kpa~137Kpa
Liter Flow Range: 6~10 lpm
Operation Temperature Range: 10°C ~40°C (50°F ~104°F)
Operation Humidity Range: 10% ~95% RH
Storage Temperature Range: -20℃ ~70℃ (-4℉~158℉)
Storage Humidity Range: 10%~95% RH
Atmospheric pressure 500~1060hPa
