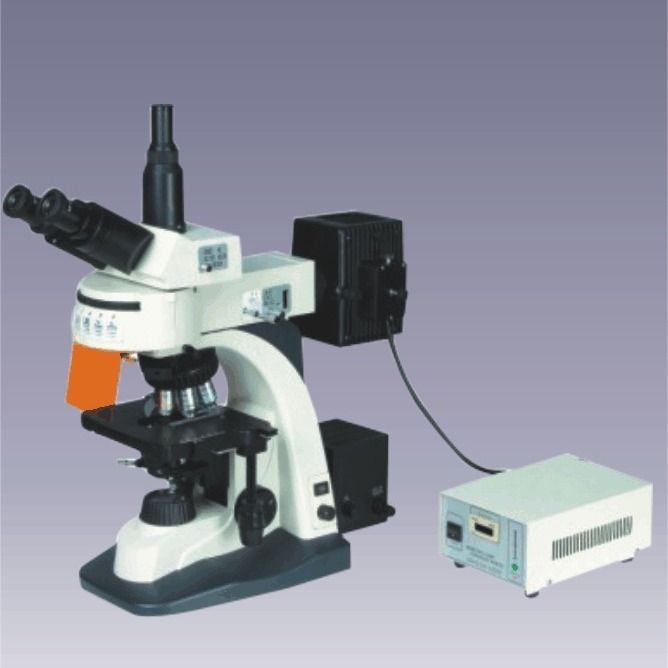

Microscope
MF5332
Compensation Free Binocular Head Inclined at 30°（50mm-74mm）,
Eyepiece: WF10×/22mm,
Infinite Apochromatic Fluorescent Objectives:
4×/N.A.O.15、10×/N.A.O.35、20×/N.A.0.6、40 × (S) /N.A.O.75,
Sextuple Nosepiece,
Double layer mechanical stage, Stage Size: 180mm×160mm,
Moving Range: 80mm×50mm, N.A.1.25 Abbe condenser with iris diaphragm and filters,
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism.
Fine focusing scale value 0.002mm,
Transmission Illumination: Halogen Bulb 12V/30W, Brightness Adjustable,
Epi-Fluorescent Illumination: 220V(110V) .Ultra-high pressure Mercury Lamp100W/DC.
Digital display mercury lamp constant power,
Fluorescent Box: G、B、BV、V、U Wave Band,
