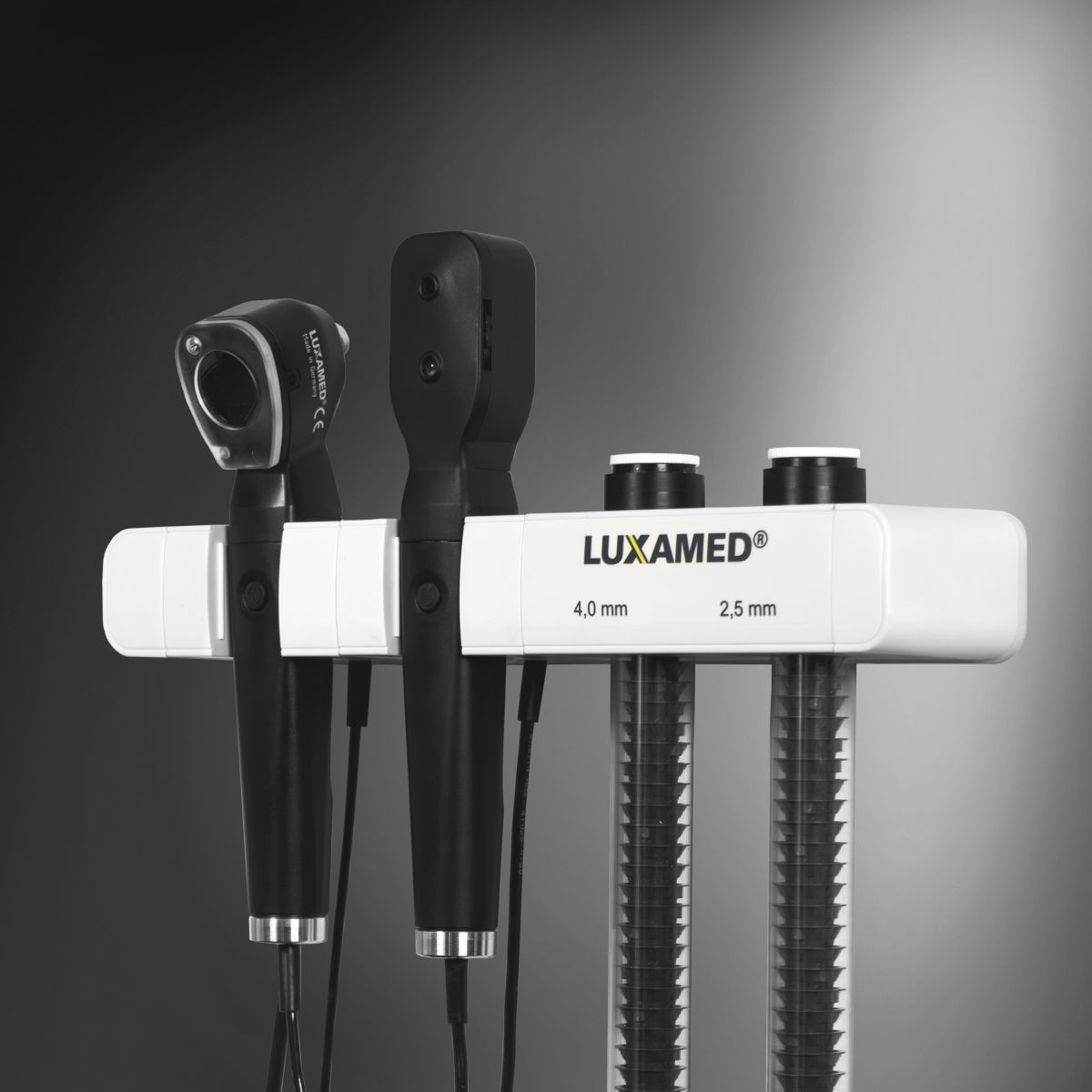

LuxaScope Wall Diagnostic Centre

instrument handles with locking screw for instrument heads One-button operation for enabling and dimming the instruments automatic switch-off after 3 min. after placing in the handle holder Power supply in mains operation with 220V / 110V Incl. EU/GB/US plug Instrument head otoscope (1) illumination: LED-Ring with 6 LEDs (concentric) no fibre optic, field of vision is not restricted maintenance-free, because no lamp replacement necessary can be dimmed automatic switchoff after 3 minutes life expectancy of LEDs: approx. 100.000 hours by constant current drive intensity of illumination: approx. 10.000 Lux colour temperature: approx. 4.250 K optimized design of head pivoting 3-fold magnifying glass with locking function insufflation port for pneumatic test Instrument head ophthalmoscope (2) direct ophthalmoscope refraction balance: + 20 bis - 20 D (± 1 2 3 4 6 8 10 15 20 D) 5 different apertures: fixation cross, large circle, small circle, semicircle, green filter illumination: LED can be dimmed for an individual glare-free brightness automatic switchoff after 3 minutes life expectancy of LEDs: approx. 50.000 hours by constant current drive colour temperature: approx. 4.200 K optimized design of head Ear funnel dispenser (3) for up to two different funnel sizes Ø 2.5 mm and Ø 4.0 mm each tube up to 30 ear funnels easy to fill for practical and hygienic storage closable with a cover compatible with all current models ear funnels not included in scope of supply
